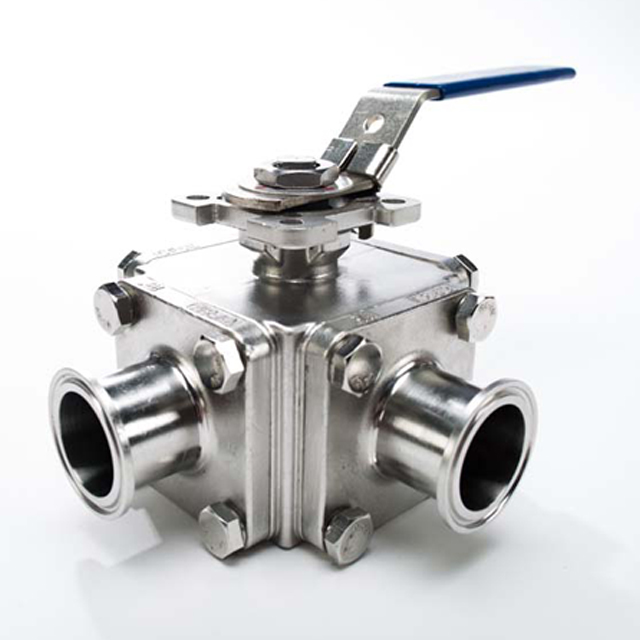

Product name: Three Way T-Port Sanitary Ball Valve
--------------------------------------------------------------------------------------------------
OnLine Service：
Print this Page
|
Bookmark this
|
 PDF Download
|
E-mail Us
|
| 【Prev Products】 | 【Next Products】 |
| Description | Send Inquiry |
|---|
|
Description |
Three Way T-Port Sanitary Ball Valve Clamp Ends (Full Port Design) |
|
Part Number |
M3WBVCExxxT(xxx: size1.5”=150) |
|
Body Materials |
316L Stainless Steel |
|
Gasket and Seat |
25% Carbon and 75% PTFE |
|
Finishing |
CNC processed surface (Outer: Ra ≤0.6μm Inner: Ra≤0.8μm) |
|
Connection Type |
½" through4”Sanitary Weldable Plain |
|
Minimum order |
100 pcs each size |
|
Design Principle |
Unlike 2-seated diverter valves and other multi-port valves on the market, this series has 4 seats (five seats in bottom entry valves) for positive shut-off in the closed position. This true multiport function can reduce the number of valves required in a process system and gives engineers greater design flexibility |
|
Feature |
● .ISO 5211 Direct Mount Pad ● 100%Full Port Design ● Lockable Handle ● Cavity Filled Seat ● Blow-out Proof Stem |
|
Operating Pressure |
800 PSI to 1000 PSI |
|
Temperature Range |
-20 °F to 420 °F |
|
Application |
manual handle, pneumatic&electric head available |
|
Packaging |
Five layers of double corrugated boxes, |
|
Shipment |
Air shipment, Ocean shipment, DHL/UPS available |
|
Payment |
T/T, L/C,West Union, Paypal |

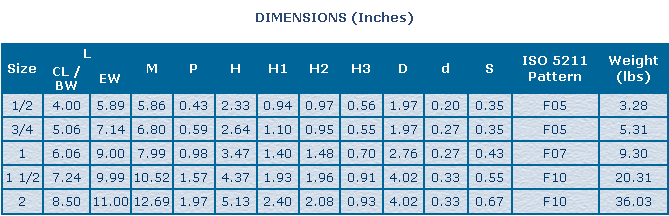

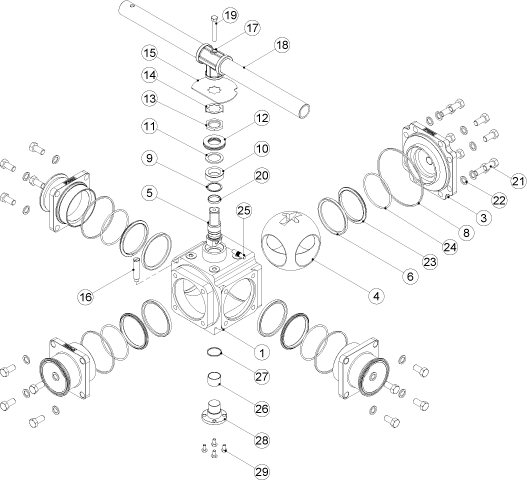

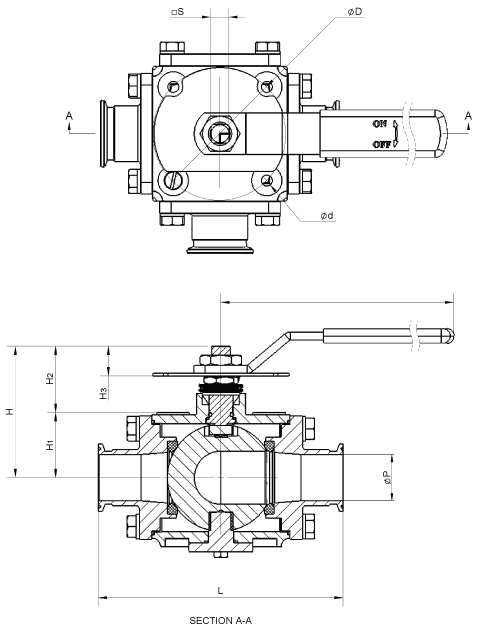

Dimensions and Materials List for ½" to 2"
|
Item |
Part Name |
Material |
Qty |
|
1 |
Body |
A351 Gr. CF8M |
1 |
|
2 |
End Cap |
A351 Gr. CF8M |
3 |
|
3 |
Blind End Cap |
A351 Gr. CF8M |
1 |
|
4 |
Ball |
316SS |
1 |
|
5 |
Stem |
316SS |
1 |
|
6 |
Seat |
TFM |
4 |
|
7 |
Body Seal |
TFM |
4 |
|
8 |
Body Bolt |
304SS |
16 |
|
9 |
Body Bolt Washer |
304SS |
16 |
|
10 |
Thrust Washer |
PEEK |
1 |
|
11 |
Stem O-Ring |
Viton 90 |
1 |
|
12 |
Stem Packing Set |
TFM |
1 |
|
13 |
Packing Gland |
304SS |
1 |
|
14 |
Belleville Washer |
301SS |
4 |
|
15 |
Gland Nut |
304SS |
1 |
|
16 |
Gland Nut Lock Washer |
304SS |
1 |
|
17 |
Stop Pin |
304SS |
1 |
|
18 |
Stop Plate |
304SS |
1 |
|
19 |
Stem Set Pin |
316SS |
1 |
|
20 |
Handle |
304SS |
1 |
|
21 |
Handle Nut |
304SS |
1 |
|
22 |
Handle Cover |
Vinyl |
1 |
|
23 |
Trunnion Bearing |
TFM |
1 |
|
24 |
Trunnion Bolt |
304SS |
3 |
|
25 |
Trunnion |
316SS |
1 |
|
26 |
Trunnion Gasket |
TFM |
1 |

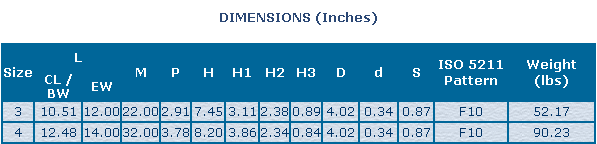

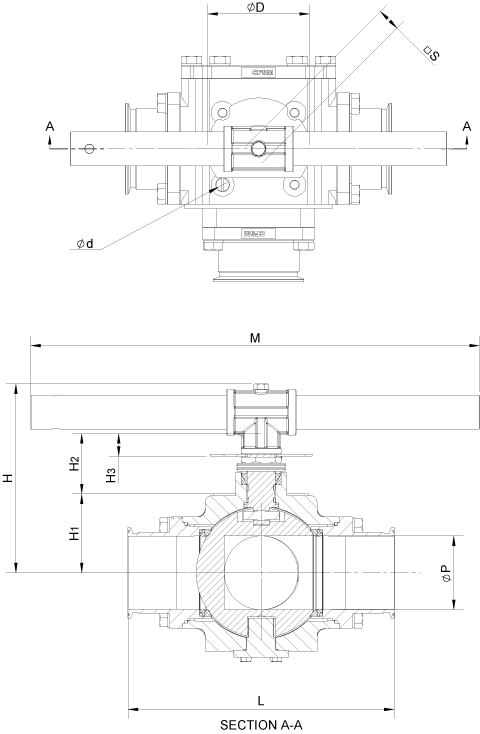

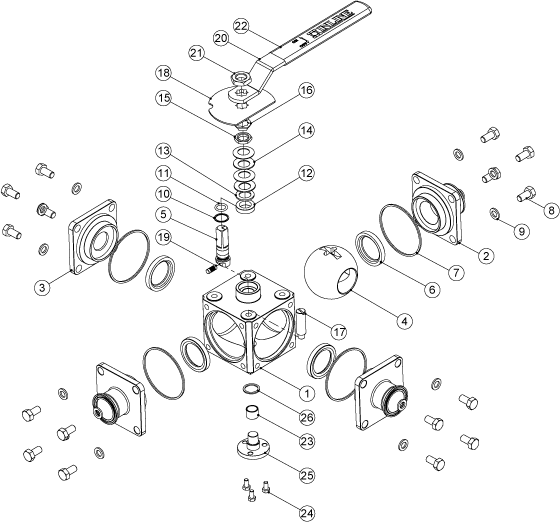

Dimensions and Materials List for 3" and 4"
|
Item |
Part Name |
Material |
Qty |
|
1 |
Body |
A351 Gr. CF8M |
1 |
|
2 |
End Cap |
A351 Gr. CF8M |
3 |
|
3 |
Blind End Cap |
A351 Gr. CF8M |
1 |
|
4 |
Ball |
316SS |
1 |
|
5 |
Stem |
316SS |
1 |
|
6 |
Seat |
TFM |
4 |
|
7 |
Body Seal (small) |
TFM |
3 |
|
8 |
Body Seal (large) |
TFM |
1 |
|
9 |
Thrust Washer |
PEEK |
1 |
|
10 |
Stem Packing Set |
TFM |
1 |
|
11 |
Packing Gland |
304SS |
1 |
|
12 |
Belleville Washer |
301SS |
4 |
|
13 |
Gland Nut |
304SS |
1 |
|
14 |
Gland Nut lock Washer |
304SS |
1 |
|
15 |
Stop Plate |
304SS |
1 |
|
16 |
Stop Pin |
304SS |
1 |
|
17 |
Handle Drive Coupling |
304SS |
1 |
|
18 |
Pipe Handle |
304SS |
1 |
|
19 |
Handle Bolt |
304SS |
1 |
|
20 |
Stem Bearing |
PEEK |
2 |
|
21 |
Body Bolt |
304SS |
20 |
|
22 |
Body Bolt Washer |
304SS |
20 |
|
23 |
Seat Housing |
316SS |
4 |
|
24 |
Seat Housing O-Ring |
Viton 90 |
4 |
|
25 |
Stem Set Pin |
316SS |
1 |
|
26 |
Trunnion Bearing |
PEEK |
1 |
|
27 |
Trunnion Seal |
PEEK |
1 |
|
28 |
Trunnion |
316SS |
1 |
|
29 |
Trunnion Bolt |
304SS |
4 |
